Radios

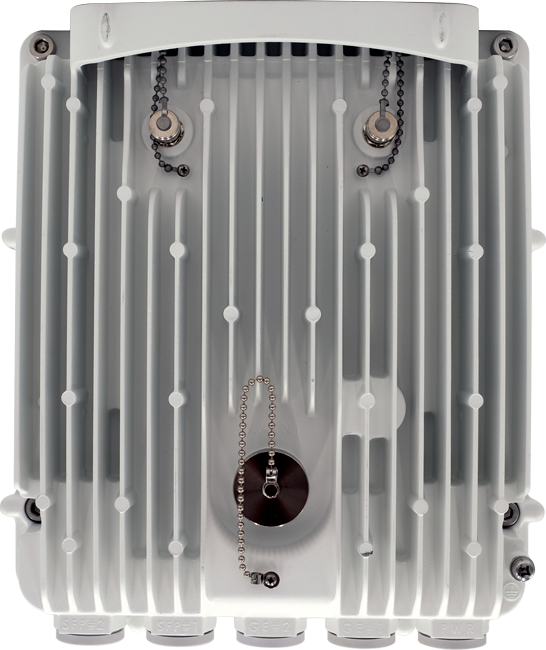

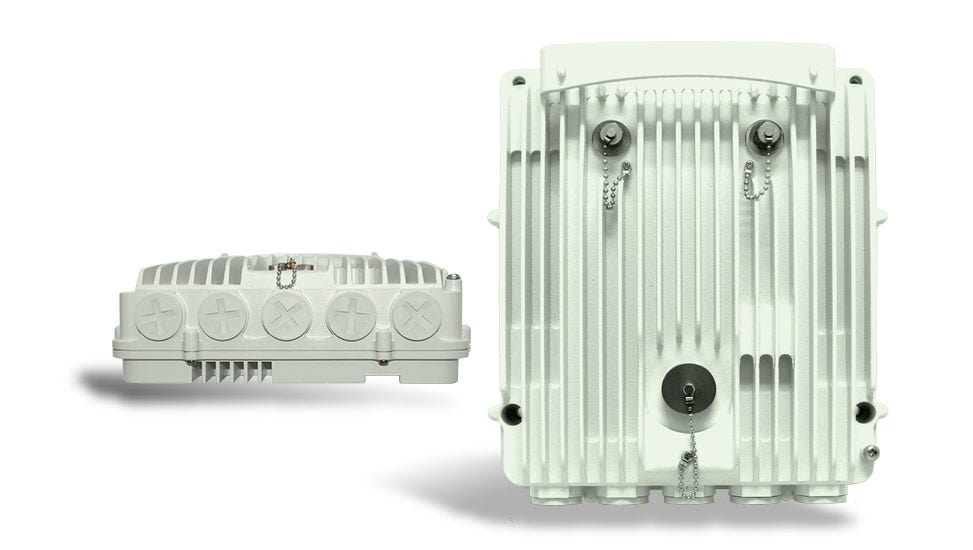

WTM 4000
The WTM 4000 platform delivers ultra-high capacity in single or dual-transceiver architecture, optimized for all-outdoor applications.
Available Radio Types
WTM 4100
The WTM 4100 is the single-core full-outdoor microwave solution. It comes with 4096QAM-capable modem, 50Gbps L2/L3 switch, two GE electrical ports and two SFP ports capable of 10GE operation. One or two channels are supported in each chassis and cross-pol and 4-channel configurations are supported using two WTM 4100 terminals. With low power consumption and the ability to expand from 1 to 2 to 4 channels, the WTM4100 is the workhorse of leading microwave networks around the world.
WTM 4200
The WTM 4200 is the dual-core full-outdoor microwave solution. Like WTM 4100, it comes with 4096QAM-capable modem, 50Gbps L2/L3 switch, two GE electrical ports and two SFP ports capable of 10GE operation. The WTM 4200 provides the best 2-channel RF performance and is the #1 selling radio in the WTM 4000 family.
WTM 4500
The WTM 4500 is the dual-core full-outdoor microwave solution, optimized for space diversity and remote-mount applications. Like the other WTM 4000 products it comes with 4096QAM-capable modem, 50Gbps L2/L3 switch, two GE electrical ports and two SFP ports capable of 10GE operation, and like WTM 4200 it utilizes dual transceiver units inside the radio terminal for best two-channel performance.
WTM 4800 Multi-Band
The WTM 4800 family is Aviat’s Multiband (E-band plus Microwave) radios. The Multiband versions come in several single-radio and dual-radio configurations and are the industry-leading solutions for reliable capacity over distance.
WTM 4800 E-Band
The WTM 4800 family is Aviat’s millimeter wave (E-band, 70/80GHz, lightly-licensed) product line. Single-channel E-band up to 10Gbps full-duplex, Dual-channel E-band up to 20Gbps full-duplex.
WTM 4000 benefits
- Ultra-High, 5G-Ready Capacity - Comprising WTM 4100, WTM 4200 and WTM 4500, the WTM 4000 series includes the very latest capacity innovations, including 4096QAM, 100 MHz channels, Adaptive Dual-Carrier and Multi-Layer Header Compression, with single and dual-transceiver configurations all in a single compact all-outdoor device.
- Multi-Architecture Design Options - With a fully self-contained architecture, with integrated high-speed Ethernet switch, optimized for full- outdoor implementation, WTM 4000 can also support split-mount applications when used with Aviat’s CTR 8000 Transport Switch/Router.
- High Performance and Advanced Microwave Features - WTM 4000 supports best-in-class system gain performance for longer reach, smaller antennas, improved link availability and lower total cost of ownership, with advanced radio features such as co-channel operation with XPIC, radio link bonding (L1LA) and LOS MIMO.
- Advanced Carrier Ethernet, IP/MPLS Networking and SDN - Advanced networking options include the very latest in Carrier Ethernet switching, Ethernet OAM, packet-based synchronization and SDN. WTM 4000 is the only all outdoor radio software upgradeable to support L3 IP/MPLS and includes a full suite of high-security features.
Videos
Powering the WTM 4000
This video demonstrates how to power up a WTM4000 Radio Terminal.
Software Licensing
This video overviews software licenses.
WTM 4000 Overview of Ports
This video details the WTM 4000 ports.
Popular Radios
-
W48-11H1-DCH2WTM 4800 Multi-band 80 GHz, T-R 10GHz, 81000-86000 TX High, 11 GHz, T-R 490/500/420/530MHz, 11200-11505 TX High, A2C+ capable, +/-40 to +/-57VLead Time:Quantity at Lead Time ()OUT OF STOCK -
W48-11H1-DPH2WTM 4800 Multi-band 80 GHz, T-R 10GHz, 81000-86000 TX High, 11 GHz, T-R 490/500/420/530MHz, 11200-11505 TX High, A2C+ capable, +/-40 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK -
W48-11H1-DPH3WTM 4800 Multi-band 80 GHz, T-R 10GHz, 81000-86000 TX High, 11 GHz, T-R 490/500/420/530MHz, 11200-11505 TX High, 80GHz HP capable, A2C+ capable, +/-40 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-11H1-DPL2WTM 4800 Multi-band 80 GHz, T-R 10GHz, 71000-76000 TX Low, 11 GHz, T-R 490/500/420/530MHz, 11200-11505 TX High, A2C+ capable, +/-40 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-18L5-DPH3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 81000-86000 TX high, 18 GHz, T-R 1560MHz, 17700-18140 TX Low, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK -
W48-18L5-DPH2WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 81000-86000 TX high, 18 GHz, T-R 1560MHz, 17700-18140 TX Low, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W42-L6H1-DPXWTM 4200, L6 GHz OMT, T-R 240/252.04/266MHz, 6175-6305 TX high, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK -
W48-23L4-DPL3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 71000-76000 TX low, 23 GHz, T-R 1008MHz, 22330-22590 TX low, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK -
W48-23L4-DPH3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 81000-86000 TX high, 23 GHz, T-R 1008MHz, 22330-22590 TX low, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23L3-DPL3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 71000-76000 TX low, 23 GHz, T-R 1008MHz, 22002-22358 TX low, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23L3-DPH3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 81000-86000 TX high, 23 GHz, T-R 1008MHz, 22002-22358 TX low, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23L2-DPL3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 71000-76000 TX low, 23 GHz, T-R 1200/1232MHz, 21784-22400 TX low, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23L2-DPH3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 81000-86000 TX high, 23 GHz, T-R 1200/1232MHz, 21784-22400 TX low, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23L1-DPL3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 71000-76000 TX low, 23 GHz, T-R 1200/1232MHz, 21200-21800 TX low, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23L1-DPH3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 81000-86000 TX high, 23 GHz, T-R 1200/1232MHz, 21200-21800 TX low, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23H4-DPL3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 71000-76000 TX low, 23 GHz, T-R 1008MHz, 23338-23599 TX high, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23H4-DPH3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 81000-86000 TX high, 23 GHz, T-R 1008MHz, 23338-23599 TX high, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23H3-DPL3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 71000-76000 TX low, 23 GHz, T-R 1008MHz, 23010-23366 TX high, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23H3-DPH3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 81000-86000 TX high, 23 GHz, T-R 1008MHz, 23010-23366 TX high, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
-
W48-23H2-DPL3WTM 4800 Multi-Band, 80 GHz, T-R 10GHz, 71000-76000 TX low, 23 GHz, T-R 1200/1232MHz, 23000-23600 TX high, 80GHz HP capable, A2C+ capable, +/-20 to +/-57V & 802.3bt PoELead Time:Quantity at Lead Time ()OUT OF STOCK
